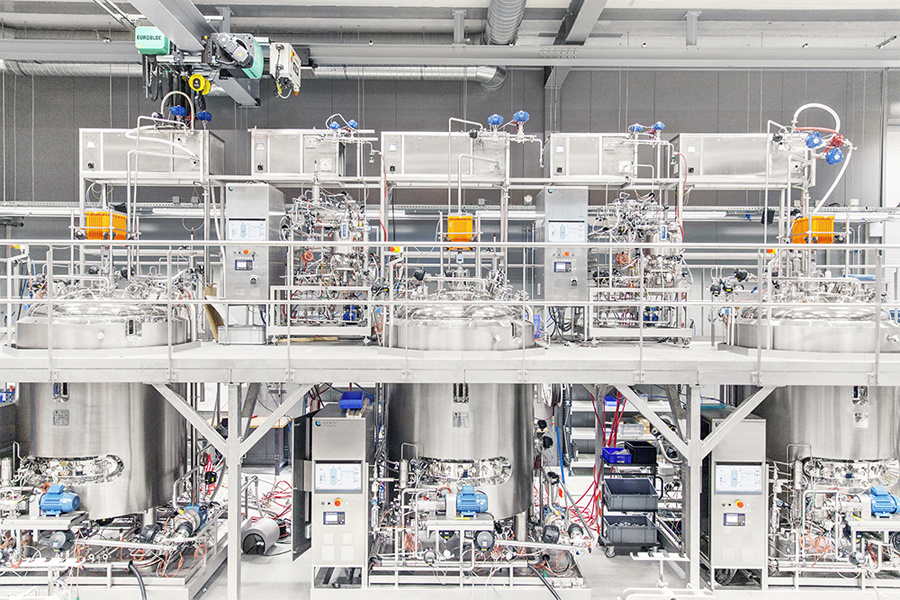

As conditions for optimal growth of cells and microbial organisms differ per application, the design of the bioreactor or fermenter differs as well. The BioProduction stands for special projects, up to complete cGMP production systems of several thousand liters, that include tailor-made systems to match cultivation requirements.
The processing steps towards building the most optimal cultivation system can be complex, requiring tailor-made systems. Using modern design technologies, we will guide you through the process – from concept stage to installation. Our systems can be configured to various applications, whether microbial or cell cultures, and can be customized to specific requirements like custom volumes, cleaning solutions, access platforms, control solutions and materials.
Choose the best options for your goals; skids on wheels or permanent mounts, mobile or stationary Clean-In-Place with or without automation. Complementary media prep, harvest and inactivation systems can be supplied as well. Design any system to suit your needs.
Bioreactors play a key role in producing life-saving vaccines and medicines. This complex process requires highly optimized, state of the art systems. With the Applikon BioProduction, we provide ease and flexibility of customizing the vessels to handle any type of application needs.
The stainless steel bioreactors and fermenters are built to the latest standards on hygienic processing, meeting cGMP and GAMP requirements, and can be supplied with an extensive documentation package to support efficient validation.
Stainless steel bioreactors minimizes the risk of contamination as there are no consumables to be replaced for every single run. Furthermore, these Sterilizable-in-Place bioreactors are supplied with magnetic coupled agitator connections. Whereas the agitator shaft continues from the outside to the inside of the bioreactor with traditional connections (lipsealed or double mechanical seal), here the connection is established via magnets. Since there is no connection with the outside world, there is no risk of contamination.
The open frame construction gives easy access for maintenance and operation.
The Applikon stainless steel bioreactor range is completely fabricated using pharma-grade 316L stainless steel and supplied with a surface finish of Ra < 0.4 micron. This smooth surface ensures that biofilms and debris will not stick to the internals of the bioreactors. This greatly simplifies the cleaning procedure and creates ease of mind knowing that the bioreactors will always be reproducible clean.
| Total volume | Custom built bioreactor systems are available up to 5,000 liter total volume |
| Drive system | Magnetically coupled, mechanical seal, bottom or top mounted agitator options available |
| Maximum agitator tip speed (m/s) | up to 5 m/s |
| Impellers | Rushton, marine, hydrofoil and more |
| Gas sparger | Porous sparger, L-Sparger or Ring-type sparger |
| Gas overlay | Optional gas overlay line |
| Exhaust gas | Water cooled exhaust gas condenser with internal spiral and/or jacketed |
| Sampling | Resterilizable sample system; manual or fully automated SIP and CIP possible |
| Draining | Resterilizable bottom mounted drain; manual or fully automated SIP and CIP possible |
| Additions | Sterilizable additions (push valves) and resterilizable addition ports; fully automated SIP and CIP possible |
| pH | Measurement: 12 mm classic pH sensor in DN25 port in lower side wall, redundant pH sensor possible |
| Control: via acid pump or CO2 gas (rotameter or MFC) in combination with alkali pump | |
| DO2 | Measurement: 12 mm polarographic DO2 sensor in DN25 port in lower side wall, redundant DO2 sensor possible |
| Control: via a combination of N2, Air, O2 (Rotameter or MFC) and/or agitation | |
| Temperature | Measurement: Pt-100 sensor in DN25 port in lower side wall |
| Control: cooling and heating jacket via bioreactor wall via tap water, chilled water, indirect steam or direct steam injection | |
| Foam | Measurement: Height adjustable conductivity based foam sensor and/or radar foam detection |
| Control: via antifoam pump, mechanical foam breaker and/or foam centrifuge removal | |
| Level | Measurement: Height adjustable conductivity based level sensor, radar level detection and/or load cells under bioreactor (frame) |
| Control: pump for liquid addition or removal |
