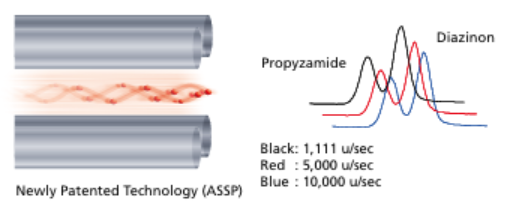

Single Quadrupole GCMS-QP2020 NX maximizes the potential by offering efficiency improvements for various aspects of analytical work. Extensive options such as headspace analysis (HS-20 NX) for high sensitivity volatile component analysis, Direct Sample (DI) injection, soft ionization methods such as CI (Chemical Ionization), NCI (Negative Chemical Ionization) expand the range of applications. A thoroughly reengineered ion source where the filament and ion source box are well separated coupled with the introduction of a shield that achieves uniform temperature provides consistent sensitivity. The precision-designed quadrupole mass filter enables accurate mass assignments across the entire mass range and is equipped with a pre-filter to reduce the influence of contamination on the main filter.
With both loop and loop/trap models, the HS-20 NX dedicated headspace sampler is an optimal solution for analysing a wide range of volatiles. AOC-30 Series of autosampler offers highly reliable automatic operations with built-in Pro Tips for method creation, customized cleaning sequences, sample navigator function built on analytical intelligence and longer lifetime consumables.

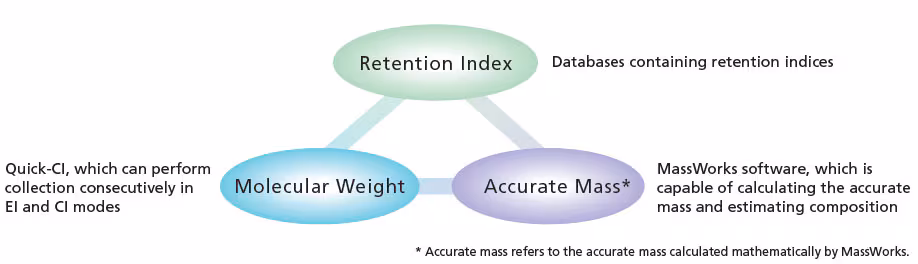

Offering up to 10 library files that can be configured including the famous NIST, Wiley, GC/MS MPW DRUG libraries, the system is a great source of reference product libraries.
LabSolutions Insight Multi-analyte Software integrates LC-MS and GC-MS systems providing tools to streamline data review, automatically applies peak detection criteria allowing efficient data analysis.
