The AOC-6000 Plus Multifunctional Autosampler enables various syringes injections, including liquid injection, headspace (HS) injection, and solid-phase microextraction (SPME) injection. The automatic syringe exchange RTC (Robotic Tool Changer) function enables continuous sample injection using different syringes. By combining with the Twin Line MS system, different analytical methods such as SPME and HS can be performed continuously without changing the column.
Choose between liquid injection, headspace injection, and solid-phase microextraction (SPME) injection. The sample injection method can be selected to suit the sample form and the components targeted for analysis.
The AOC-6000 Plus automatically exchanges the syringe tools installed in the park station for each sample injection method (automatic tool exchange function).
– By employing the dedicated Heatex Stirrer, which is highly efficient at stirring, the SPME Arrow enables acceleration of the pretreatment process.
In the analysis of moldy odor substances in water, the SPME Arrow achieved a five-time increase in sensitivity compared with previous SPME. Moreover, the time required for the extraction to reach equilibrium was reduced to five minutes, which is 1/3 that of previous SPME.

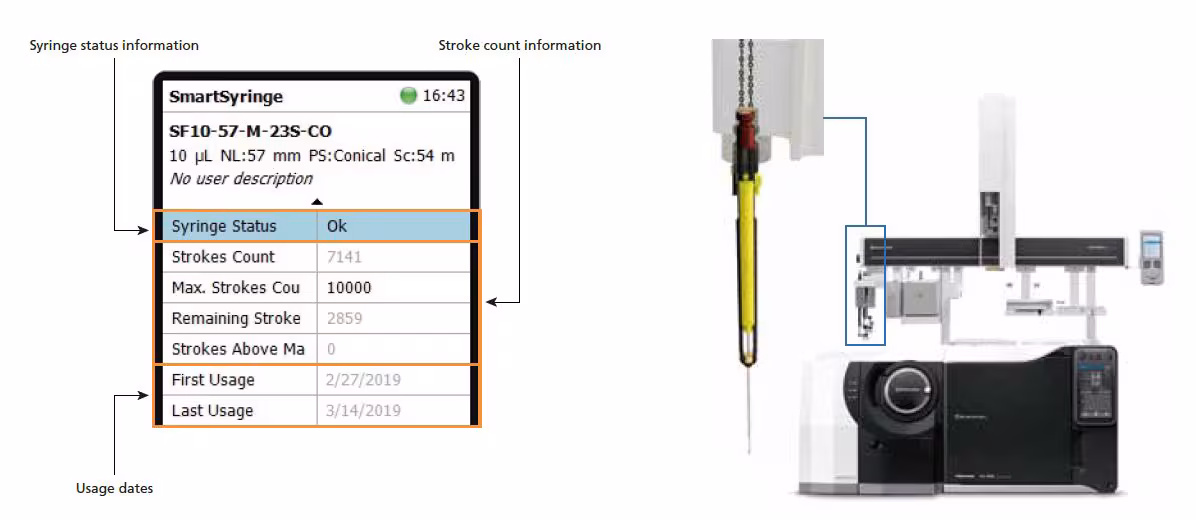

The AOC-6000 Plus includes a feature for managing the use of syringes and fibers. It reads the Smart Chips built into the specially-designed Smart Syringe, Smart SPME Fiber, and Smart SPME Arrow and displays information for the device, such as temperature resistance, usage history, usage dates and stroke count*. The ability to automate complicated consumables management and monitor the conditions of syringes and fibers leads to more reliable data.
A broad lineup of Smart Syringes, Smart SPME Fibers and Smart SPME Arrows compatible with the AOC-6000 Plus are available to cover any analysis.
Choose the best consumables for your application with a lineup of Smart SPME Fibres and Smart SPME Arrows covering all types of mobile phase. Plungers are color-coded according to the mobile phase type so that consumables can be distinguished easily.
* The AOC-6000 Plus is only compatible with the Smart Syringe, Smart SPME Fiber and Smart SPME Arrow. Syringes and fibers without a Smart Chip cannot be used.
