19″ compatible spectrometer system for UV, VIS, NIR, and Raman applications.
As part of the powerful PROGAZE platform, the rack series is a reliable tool for fast and accurate online measurements in the process.
The PROGAZE rack series offers maximum flexibility thanks to its compatibility with the broad variety of 19” components such as multiplexers, IPCs, monitors, as well as standardized racks, cabinets, and further accessories.
Method transfer between different systems is significantly facilitated as a result of the high level of standardization, sophisticated data pre-processing, and outstanding optical properties with regard to wavelength accuracy, resolution, and sensitivity.
Therefore, integration of the PROGAZE rack system into existing infrastructure grants access to quantitative and qualitative analyses in a straightforward fashion.
Various spectral ranges from UV, VIS, NIR, as well as for Raman applications are available.
Functional expansion using optical fiber switches in 19” format enables up to 4 measuring channels.
Particular attention has been paid to the mounting options such that all cables and fibers can be routed both to the front or to the rear, ensuring maximum flexibility for installation.
Optionally integrated data evaluation functionalities enable autonomous operation as a smart sensor.

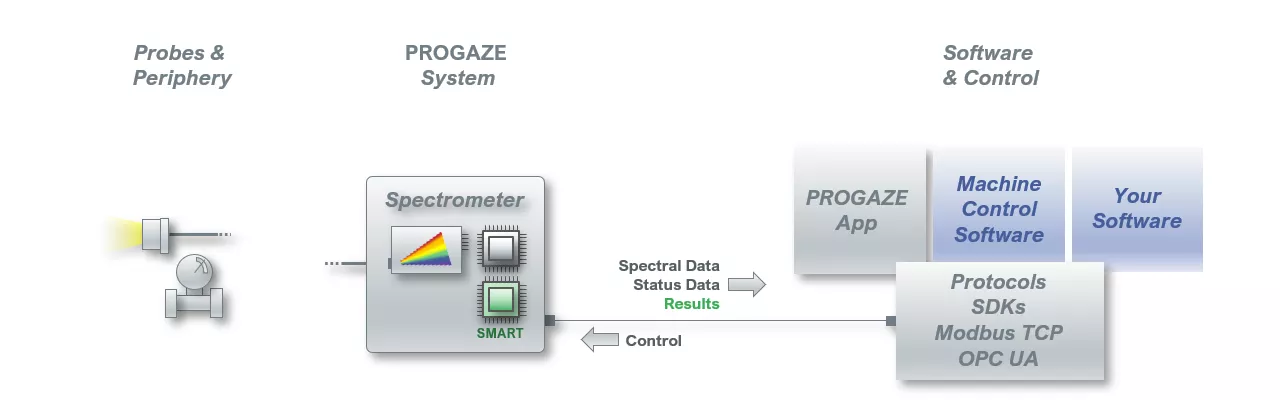

To transfer the acquired data to any automation layer or control software, the PROGAZE rack system offers various communication interfaces and protocols, e. g.:
These future-proof interfaces also give convenient access to modular automation, such as MTP, or client/broker based concepts.
All probes and additional external periphery (e. g., temperature sensors or pressure sensors) can be controlled and monitored directly via the PROGAZE rack interface.
In addition to standard system operation via an external software application, the SMART versions with on-board microprocessors permit autonomous stand-alone operation.
The required model files as well as further workflow procedures can be stored directly on the device in an access-protected memory.
UV, VIS, NIR, and Raman spectrometer with a variety of wavelength ranges and dedicated illumination sources are available for various applications and requirements.
| UV | VIS | NIR | Raman | |
|---|---|---|---|---|
| Smart | ✔ | ✔ | ✔ | ✔ |
| Software | ✔ | ✔ | ✔ | ✔ |
| IPC | ✔ | ✔ | ✔ | ✔ |
| Monitor | ✔ | ✔ | ✔ | ✔ |
| Multiplexer | ✔ | ✔ | ✔ | ✔ |
| Drawer | ✔ | ✔ | ✔ | ✔ |
Up to four probes can be operated simultaneously with one PROGAZE rack system.
