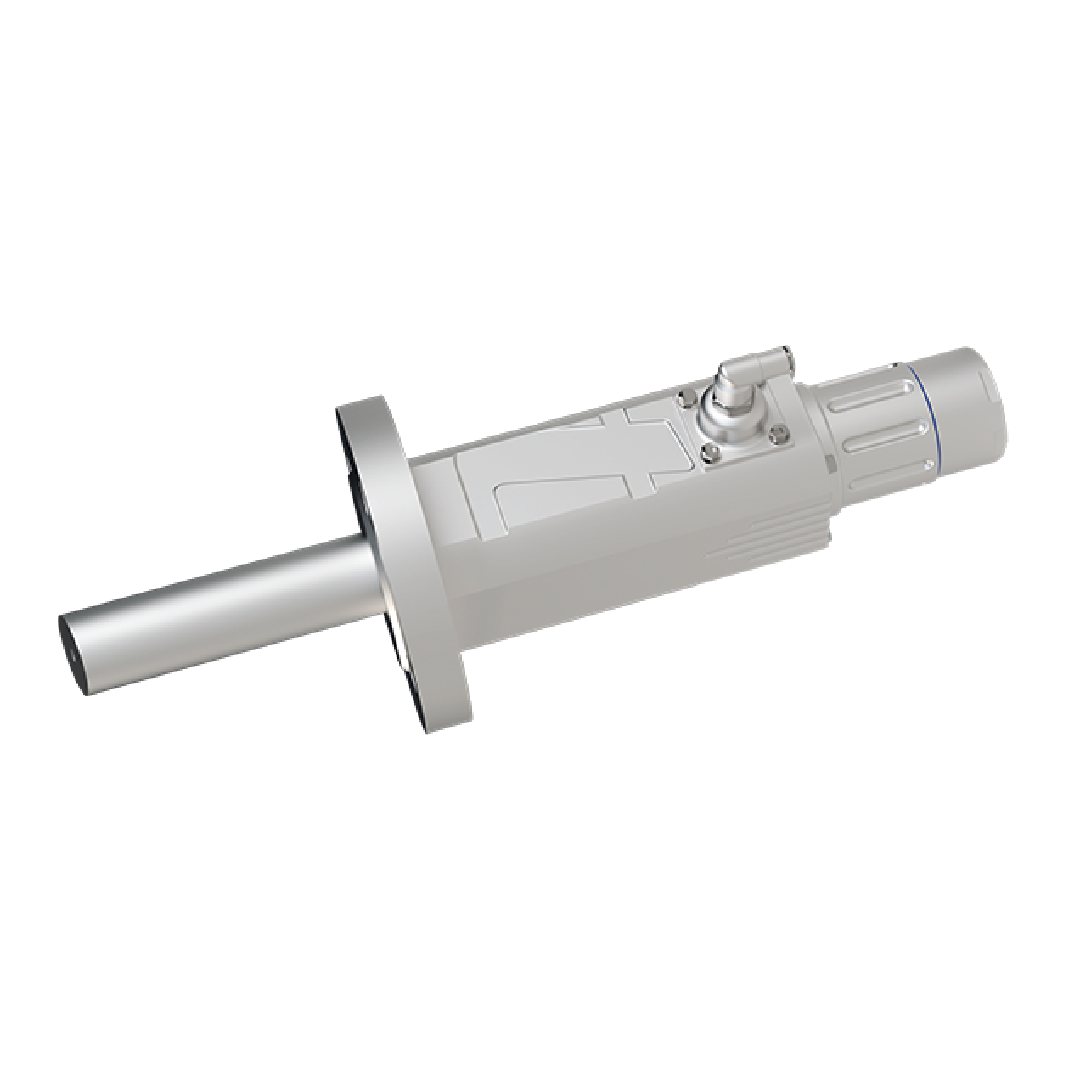

The PROGAZE 62 is a process-grade reflectance probe. It is used for spectroscopic measurements, covering UV, VIS, and NIR spectral ranges. The integrated white reference allows an automatic system alignment without removing the probe from or interruption of the process. Continuous monitoring and quality inspection of various media in reactors or pipelines are common applications.
The PROGAZE 62 is ideally suited for the measurement of opaque liquids or fluids. The probe is compatible to all standard UV, VIS, and NIR spectrometer systems using fiber optic cables. Furthermore, a wide range of adapters and flanges ensures fast and easy integration into existing production lines.
To meet requirements for the operation in hygienic or hazardous areas dedicated variants are provided.
| Spectroscopic Method | UV, VIS, and NIR |
| Measurement Type | Reflection |
| Sampling Type | Immersion |
| Wavelength Range |
UV: 200 – 400 nm VIS: 380 – 850 nm NIR: 850 – 2500 nm |
| … | … |
| Dimensions (W x H x D) | 60 mm x 300 mm x 60 mm |
| Weight | Approx. 2.2 kg |
