GC-2014C

GC-2014C Spincotech

Capillary and Packed Gas Chromatograph

Big Performance & Small Space

User-friendly with high cost-performance, the GC-2014C gas chromatograph is an excellent option for routine analysis. It offers great flexibility with support for both packed columns and capillary columns and includes a self-diagnostics function to prevent downtime and maximize lab efficiency. Four types of injection units (Dual Packed, Split/Splitless, Single Packed, Direct Injection) and five types of detectors (FID, TCD, ECD, FPD, FTD) are supported, according to the target compounds and analysis objective. Modular injection units, detectors and auto-injectors can be easily added after installing the unit in your lab. GC2014C enables installation of two injection units and three detectors simultaneously. Effective use of valuable column resources is maintained by using the 40-mm pitch glass column.

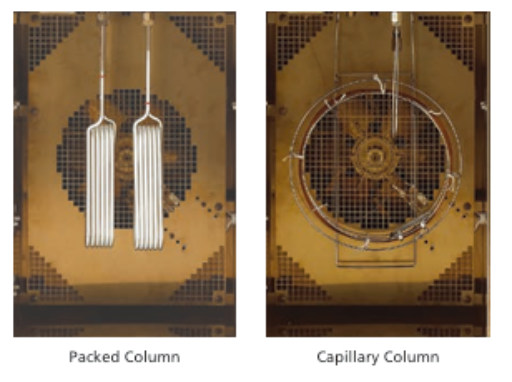

Packed Column Spincotech
Large column oven Self-diagnostics
Versatile Standard Capillary and Packed Gas Chromatograph Spincotech
Intelligent

Digital Carrier Gas Control

Single or Dual AFC

The GC-2014C Series is equipped with advanced flow controller (AFC) technology, providing higher level of repeatability of carrier gas flow. The digital control is not only for capillary columns, but packed columns as well. AFC results in high precision in retention time and peak areas.

Digital Detector Gas Control

APC
Digital Detector Gas Control Spincotech

All parameters for GC analysis are controlled digitally when APCs are used to control detector gases. This facilitates the setting of analytical conditions and log management by a data station. This also facilitates lab safety, for example in the use of FID, where the hydrogen and air flow stops automatically if the flame is extinguished due to any issues. Five electronic controller slots (AFC/APC) are available in the back bottom of the main unit.

Large display shows most analysis details at a glance

LabSolutions LC/GC Workstation (applicable to all Shimadzu GC and HPLC integrates control of GC (Nexis GC-2030 Series, GC-2010 Series, GC-2014 Series, and GC-2025) and HPLC on a unified software platform, ensuring users an easier learning curve.
